TITAN PVC accessories
For the wide range of demands in residential and commercial construction, TITAN is set up as strategic and forward-looking. With the clever optional accessories, you have more freedom of design and you can react to individual customer wishes quickly and flexibly and exploit the full performance spectrum of our TITAN hardware. Naturally, accessories can easily be integrated into the production and combined with each other.
Opening restrictor
TITAN 90° opening restrictor: protects the sash, reveal and hinge side
The new TITAN 90° opening restrictor is the first opening restrictor that not only protects the sash and reveal but has also been successfully certified in accordance with the DOEB Directive in connection with the hinge side. It damps the sash, gently stops it in the end position and safely prevents it from slamming closed unintentionally when there is a draught – without compromising on ease of use.
- Guaranteed superior functional reliability and durability
- Zero-maintenance
- Seamless integration in the window production process and easy installation
- Suitable for turn-only and turn-and-tilt windows, with the option of combining it with thresholds in the future, too
- For use with both surface-mounted and concealed hinge sides in all profile materials
- Burglar resistance up to RC2
- Durability class H3
Film
TITAN opening restrictor: Open windows according to your needs
The TITAN opening restrictor limits the turn-opening to maximum 89 mm. Decoupling based on demand is quickly possible in the comfort version without any problems. The safety version was developed in accordance with EN 13126-5 for special child-safety requirements.
Comfort variant
- For cases without special safety requirements
- Quick and easy decoupling of the restrictor by hand
- The restrictor recouples automatically after the window sash has closed
- Available for the frame materials aluminium, PVC and timber
Safety variant
- Fulfils the special child-safety requirement in accordance with EN 13126-5
- Two restrictors per sash
- Authorised persons can decouple the restrictor via lockable handle with tilt-before-turn function
- Restrictors recouple automatically after the window has closed and the handle has been turned in the locking position
- Available for the frame materials aluminium, PVC and timber
Films
TITAN Additional comfort stay
Tilting without teetering – Lock without using force.
The new additional comfort stay is a mechanical locking support by means of a force-storing spring connected to the frame and the sash profile. This tensions itself when the window is tilted, making the closing of heavy sashes and patio doors as light as a feather by "discharging" their force. The tilting process itself becomes safer and more convenient. Because a hard stop and teetering of the window are permanently prevented.
- No more wobbling while tilting open and protection of the bearing positions
- Tilt locking of large and heavyweight elements is as light as a feather due to force accumulator function
- Quick and ultra-easy assembly
- Minimum logistics thanks to fewer components
- Easy to retrofit in existing windows without dirt or contamination – Smart opportunities for additional business
Mishandling device
Mistakes happen?
Not with TITAN!
- Secured turn and tilt position with high functional reliability and direct effect
- Customised product versions are available for all window sizes and shapes
- No tools required
- Total functionality in large air gap sections
- Also easy to retrofit on installed windows
Sash brake
Exactly the right opening width - even with strong draughts
- Stops the window sash with an individually adjustable opening width
- Protects against sudden slamming open or closed in case of intense ventilation
- High level of functional reliability due to overload protection
- Fully concealed
- Easy to assemble and retrofit for sash rebate widths of 470 – 960 mm
Snapper
Protection against slamming balcony and patio doors.
- Keeps the patio door in the locking position while closing
- Protects against sudden slamming open or closed in case of draughts and protects the material
- Less assembly time and warehousing: Standard striker plate as frame part
- In the standard version: Particularly wear-resistant stop piece with an optimised point of entry curve as well as adjustable latching force
- Comfort version: Is equipped with a release function in the tilt position, ensuring it can be tilted as smoothly as usual
- Can be used for sash rebate widths of 1401 – 3000 mm

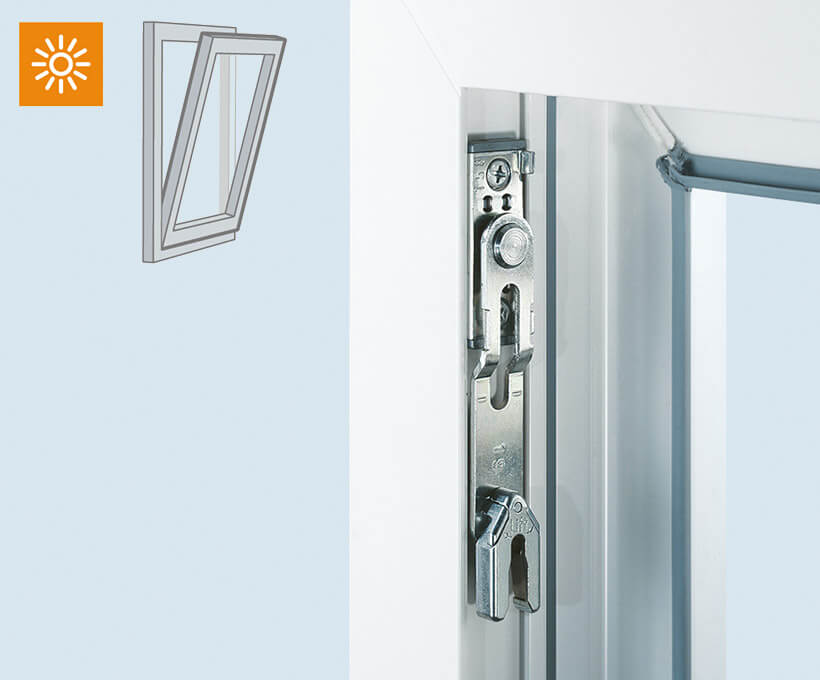

Summer-winter night vent
More comfortable ventilation thanks to adjustable tilt opening width.
The energy saving stay lets you easily adjust the amount of incoming air to the respective outside climate when venting windows. Thus, unpleasant draughts and energy costs can be reduced with one simple move of the hand.
- Summer vent feature: Normal tilt position
- Winter vent feature: approx. 40 mm tilt opening position
- Activation in one easy step without any tools
- Integrated anti-slam device
- Assembled quickly and easy to retrofit
