AEROMAT midi HY
Window ventilator with humidity control for demand-based minimum ventilation.

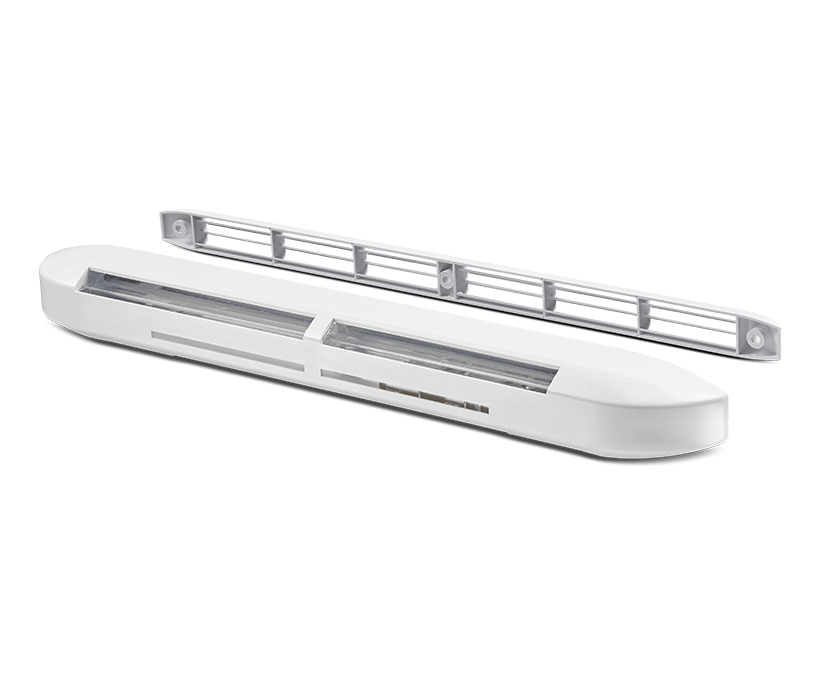

The AEROMAT midi HY passive window ventilator uses the natural pressure differential for demand-based minimum ventilation and controls the air humidity accordingly. The supply air inlet is controlled via the relative air humidity: by multi-layer fabric tapes, which react sensitively to changes by expanding or retracting. This ensures demand-based control of the room humidity in accordance with DIN 1946-6. For a high degree of ventilation and room comfort, the device with sound insulation module is recommended, which attains peak values with a performance of 42 dB sound absorption. Moreover, a version with a rotary switch is available that provides additional, manual control possibilities.
Product benefits
- Passive window ventilator with humidity control for demand-based minimum ventilation with the windows closed
- Mould prevention and protection from humidity in accordance with DIN 1946-6: Air intake regulation based on the relative humidity
- Modern and discreet look due to its rounded shape and narrow weather grille
- Optionally available in the special colours grey, brown and black
- Simple cleaning of the ventilator
- Optional version with sound insulation module for sound Isulation up to 42 dB Optional: duct set Telescopic duct
- Version with rotary switch for 3 functions Closure locked whilst maintaining the minimum ventilation (1)
- Control based on the air humidity (H)
- Locked at maximum air flow rate (2)
Installation features
- Easy integration into production processes
- Compact weather grille
- Quick and easy installation

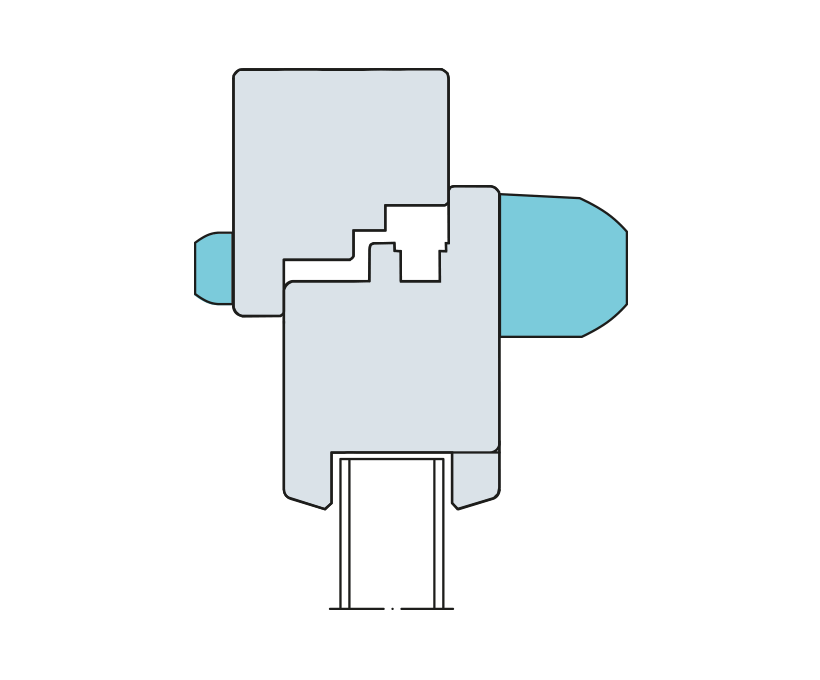

- Horizontal installation in frame and sash of timber, PVC or aluminium windows
- Suitable for renovations and new builds
- Flexible installation locations: in sash, in frame and in sash or in attachment profile
Technical specifications
- Dimensions, H x L x D: 45 x 420 x 40 / 64 with sound insulation module (Installation depth inside) / 12 (installation depth outside) mm
- Sound absorption 38 dB (42 dB with sound insulation module)
- Air throughput: 4 - 32 m3/h at 10 Pa
